EXA started selling pressure transmitter form a large stock of Bailey BC, BCN and PTS Series.

BC and BCN pressure transmitters belong to the family of the electronic transmitters for pressure and differential pressure developed by Bailey Controls Co ( U.S.A.) in the 80ies as BC Series and BCN Seriesand were the state of the art in this technology.

BC Pressure Transmitters Series, the first generation of Bailey transmitters was a "non smart" electronic type of transmitter.

BCN Pressure Transmitters Series, the second generation of transmitters, was a family of "smart" transmitters.

Although BC and BCN Series have been discontinued, these instruments lines are technologically up-to-date and functionally competitive with the new series of transmitters by the major manufacturers.

Both series BC and BCN are available from our stock with delivery off the shelf.

Please Refer to Stock Page for further information and contact us for a quotation.

BC and BCN series phased out at the end of the 90-ies and were replaced by the PTS Series. This product was designed by Bailey but it soon became an ABB product after the merging of Bailey into ABB group.

Also the PTS line was phased out shortly afterwards being replaced by the new ABB 266 Series. Please refer to Stock Page for further information and contact us for a quotation.

baileytransmitter01
PTS
baileybctransmitter01

Thanks to EXA's know-how in BC, BCN and PTS products and documentation, Exa can identify the characteristics of any requested BC, BCN or PTS model based on its nomenclature and find a suitable replacement from all the quality ranges available on the market.



TOP QUALITY TRANSMITTERS

EXA can supply ABB Pressure Transmitters ( 100% made in Italy ) of the most recent series 266 at very competitive prices..



PREMIUM QUALITY TRASNAMITTERS

EXA can supply Pressure Transmitters manufactured by any top-class European Manufacturer ( Endress+ Hauser, Applisens, Wika )



STANDARD QUALITY TRANSMITTERS

Exa can supply its own branded Pressure Transmitters series  E-BCN manufactured by reliable OEM in China with an higher price-quality factor

Contact us to get a quotation for a replacement for BAILEY BC - BCN - PTS Transmitters

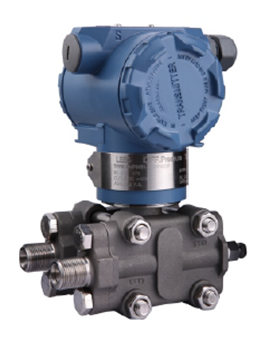

e-bcn pressure transmitter

GENERAL SPECIFICATIONS

CALIBRATED RANGE

FROM 0 … 0,16 BAR  TO 0 … 70 BAR

STATIC PRESSURE

320 BAR

ACCURACY

0,075%

DIAPHRAGM

316 SST

FLANGE/ADAPTERS

316 SST

DRAIN/VENTS

316 SST

POWER SUPPLY

13 … 45 VDC

OUTPUT

4 … 20 mA

PROCESS CONN.

1/2” NPT-F

ELECTRICAL CONN.

ISO M20 x 1.5

DISPALY

LCD DIGITAL RANGE

EXPLOSION PROOF

ATEX - EEx-d IIC-T4

Contact us to get a quotation for E-BCN SERIES Pressure Transmitters

E-BCN PRESSURE TRANSMITTERS

266
PT_KA

Pressure Transmitters ex - Bailey
